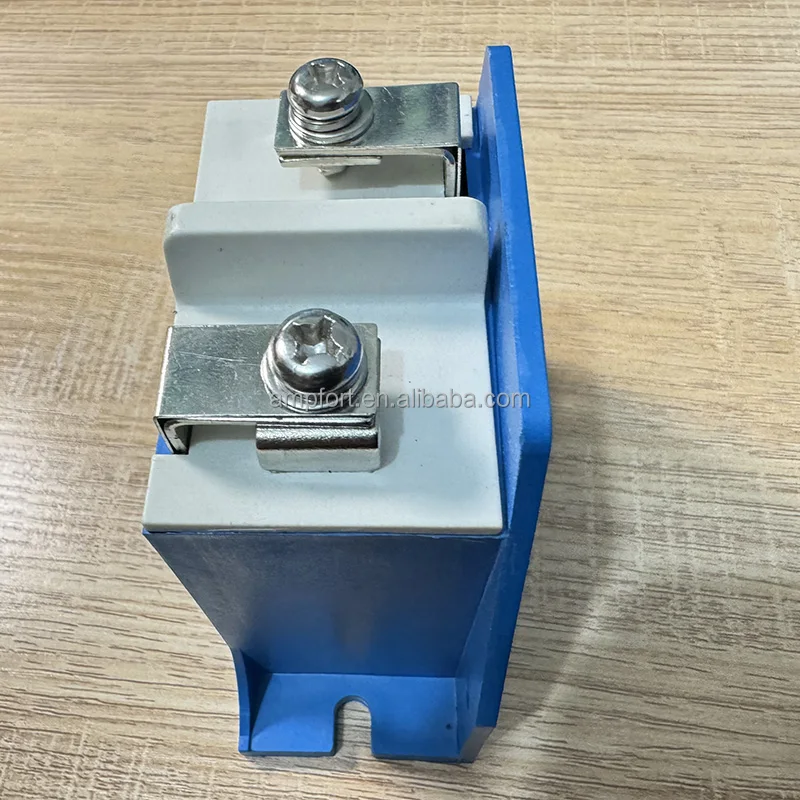

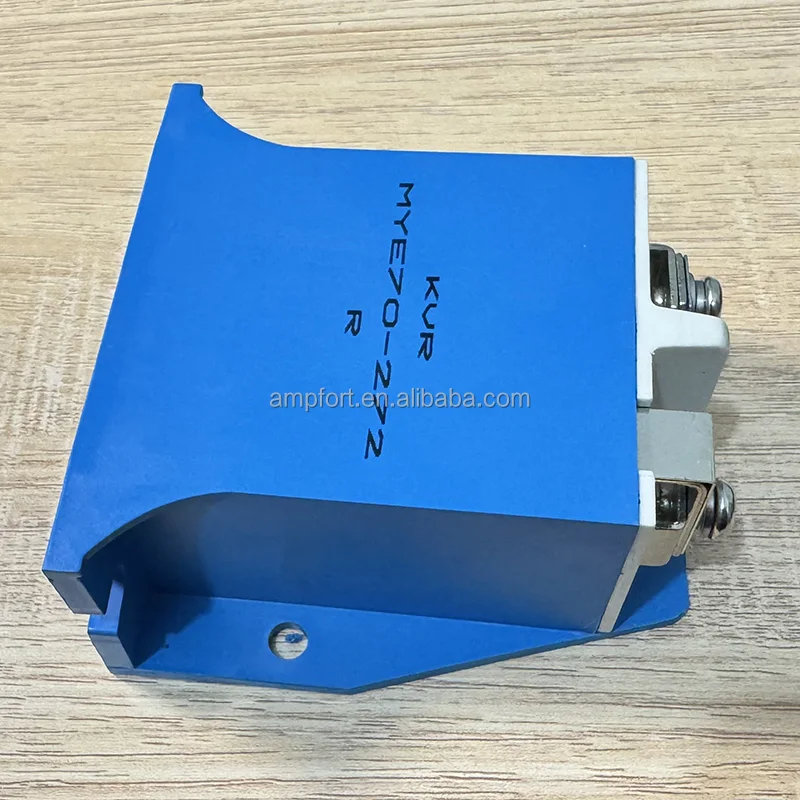

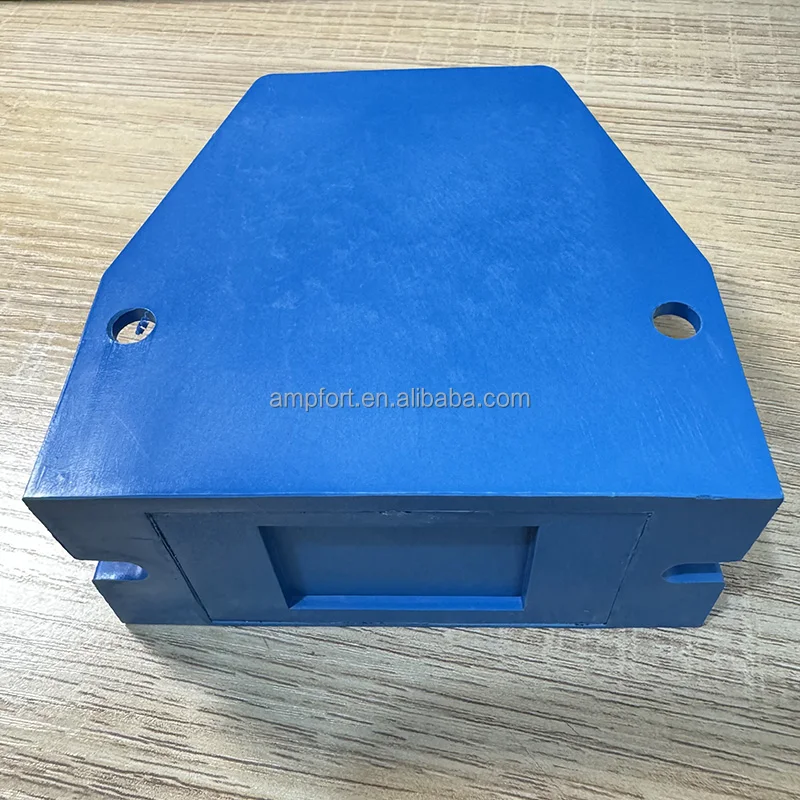

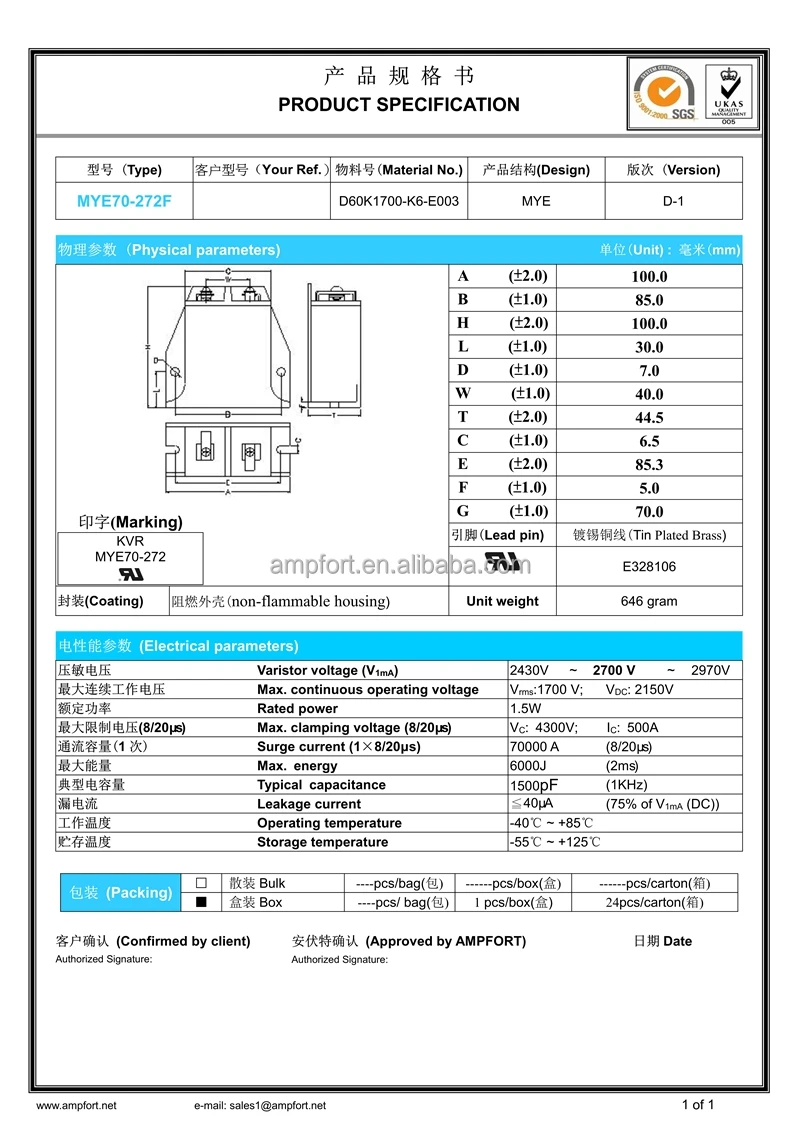

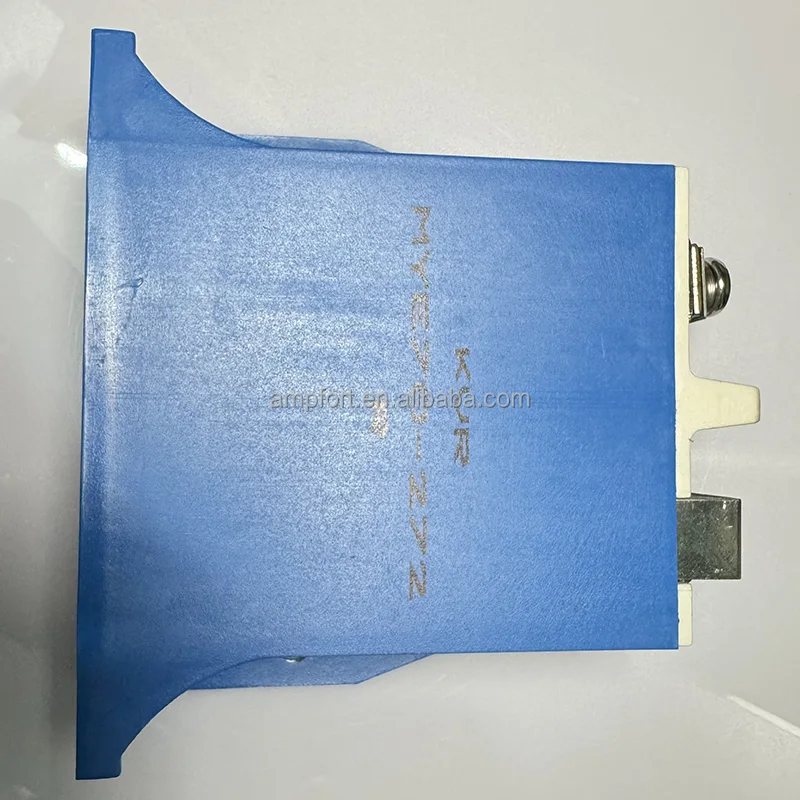

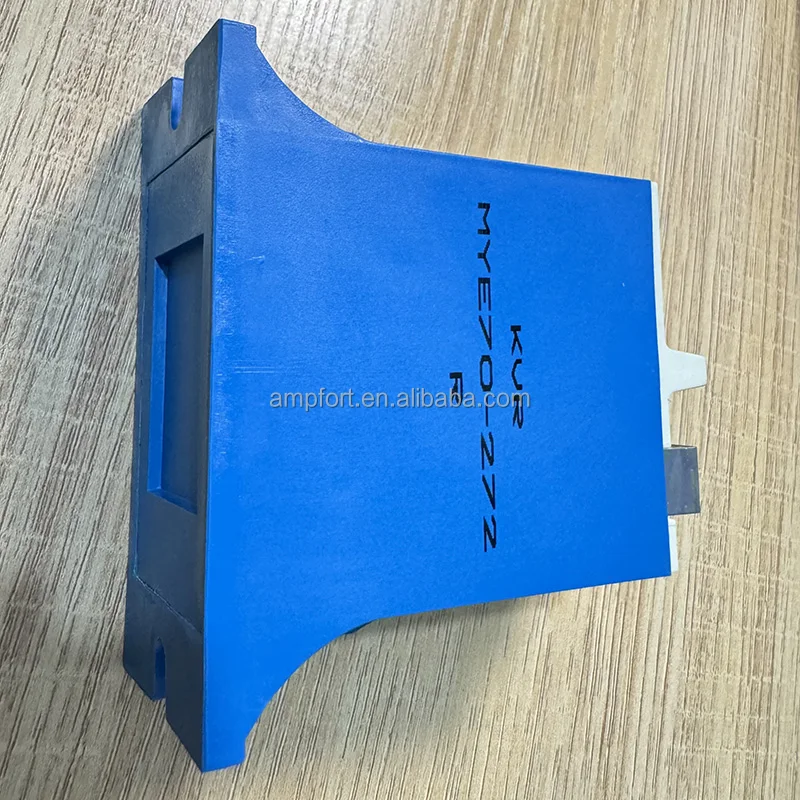

CKE Z60M272 Replacement Suppressors CASE MOVS HIGH ENERGY METAL OXIDE VARISTORS MYE70-272F
The MYE Series transient surge suppressors areheavy-duty industrial Metal-Oxide Varistors (MOVs)designed to provide surge protection for motor controls andpower supplies used in oil-drilling, mining, transportationequipment and other heavy industrial AC line applications.These varistors have similar package construction but differin size and ratings. MYE Series feature improved creep andstrike capability to minimize breakdown along the packagesurface, a package design that provides complete electricalisolation of the disc subassembly, and rigid terminals toensure secure wire contacts.
The E series are heavy-duty metal oxide varistors designed mainly for industrial applications. They offer excellent surge protection for various electronic equipment such as: traffic and railway signal systems, communication equipment, waterworks, automatic control devices for power distribution, oil drilling and mining equipment (dredgers, cranes, etc.). The E housing offers excellent protection when exposed to different kinds of vibrations, dust, moisture, etc. The advantages of the E Series are: rigid terminals for secure wire contact, solid plastic housing for secure mounting, higher insulation resistance (polyurethane filling and plastic housing).
Heavy-duty varistors (surge current capability up to 100 kA)
Wide operating voltagerange

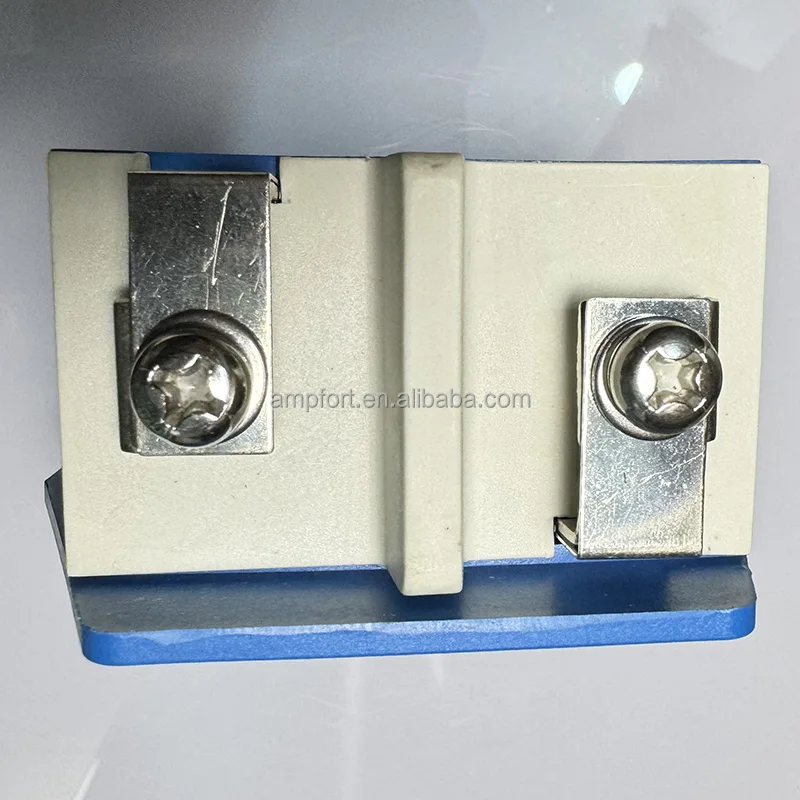

Rigid terminals for securewire contact
Case design providescomplete electrical isolationof disc subassembly
High energy absorptioncapability WTM
No derating up to 85ºCambient
It has a reliable lead and is widely used in automatic industrial equipment, power control, power transportation, communication equipment, water supply systems, petroleum equipment, mining equipment, railway signal systems, etc. Structural characteristics and packaging method: -I resistance structure: The pressure -sensitive resistance with high -strength threaded pores is installed in a flame retardant plastic shell; All conform to UL94V -0;

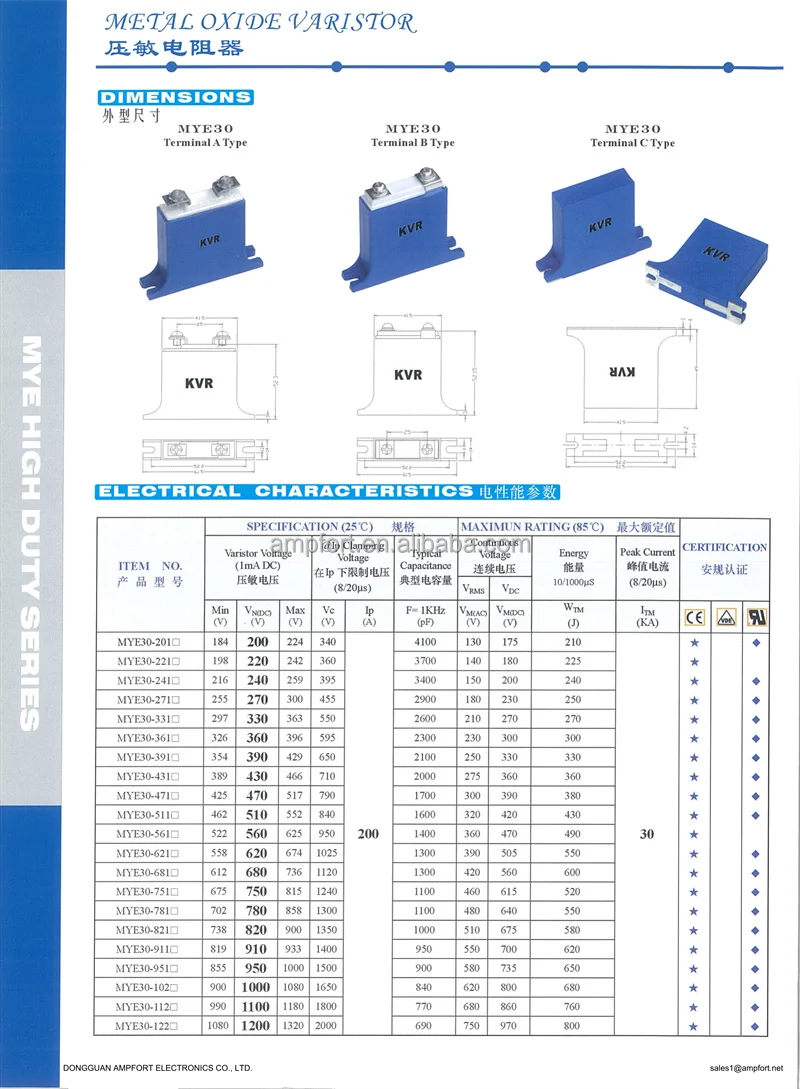

| High Duty Varistor MYE30 Series (Housing, peak current (8/20μs) 30kA) |
| VN(DC) | AMPFORT | MAIDA | Littelfuse/Harris | PANASONIC(ZNR) | Epcos(SIOV) |
| 200 | MYE30-201 | | | | B32K130 |
| 240 | MYE30-241 | | | | B32K150 |
| 270 | MYE30-271 | | | | B32K175 |
| 330 | MYE30-331 | | | | B32K210 |
| 360 | MYE30-361 | | | | B32K230 |
| 390 | MYE30-391 | | | | B32K250 |
| 430 | MYE30-431 | | | | B32K275 |
| 470 | MYE30-471 | | | | B32K300 |
| 510 | MYE30-511 | | | | B32K320 |
| 620 | MYE30-621 | | | | B32K385 |
| 680 | MYE30-681 | | | | B32K420 |
| 750 | MYE30-751 | | | | B32K460 |
| 780 | MYE30-781 | | | | B32K485 |
| 820 | MYE30-821 | | | | B32K510 |
| 910 | MYE30-911 | | | | B32K550 |
| 950 | MYE30-951 | | | | B32K575 |
| 1000 | MYE30-102 | | | | B32K625 |
| 1100 | MYE30-112 | | | | B32K680 |
Some Ampfort Varistor Cross Reference List
| AMPFORT | MAIDA | Littelfuse | PANASONIC (ZNR) | Epcos (SIOV) |
| MYE70-201 | | V131BA60 | | B60K130 |
| MYE70-241 | | V151BA60 | | B60K150 |
| MYE70-271 | | V171BA60 | | B60K175 |
| MYE70-331 | | V211BA60 | | B60K210 |
| MYE70-361 | | V231BA60 | | B60K230 |
| MYE70-391 | | V251BA60 | | B60K250 |
| MYE70-431 | | V271BA60 | | B60K275 |
| MYE70-471 | | V301BA60 | | B60K300 |
| MYE70-511 | | V321BA60 | | B60K320 |
| MYE70-621 | | V381BA60 | | B60K385 |
| MYE70-681 | | V421BA60 | | B60K420 |
| MYE70-751 | | V461BA60 | | B60K460 |
| MYE70-781 | | V481BA60 | | B60K485 |
| MYE70-821 | | V511BA60 | | B60K510 |
| MYE70-911 | | V551BA60 | | B60K550 |
| MYE70-951 | | V581BA60 | | B60K575 |
| MYE70-102 | | V621BA60 | | B60K625 |
| MYE70-112 | | V681BA60 | | B60K680 |
| MYE70-122 | | V751BA60 | | B60K750 |
| MYE70-142 | | V881BA60 | | B60K880 |
| MYE70-182 | | V102BA60 | | B60K1000 |
| MYE70-222 | | V142BB60 | | |
| MYE70-272 | | V172BB60 | | |
| MYE70-332 | | V202BB60 | | |
| MYE70-392 | | V242BB60 | | |
| MYE70-472 | | V282BB60 | |
| AMPFORT | MAIDA | Littelfuse/Harris | PANASONIC(ZNR) | Epcos(SIOV) |
| MYE100-201 | | | | B80K130 |
| MYE100-241 | | | | B80K150 |
| MYE100-271 | | | | B80K175 |
| MYE100-331 | | | | B80K210 |
| MYE100-361 | | | | B80K230 |
| MYE100-391 | | | | B80K250 |
| MYE100-431 | | | | B80K275 |
| MYE100-471 | | | | B80K300 |
| MYE100-511 | | | | B80K320 |
| MYE100-621 | | | | B80K385 |
| MYE100-681 | | | | B80K420 |
| MYE100-751 | | | | B80K460 |
| MYE100-781 | | | | B80K485 |
| MYE100-821 | | | | B80K510 |
| MYE100-911 | | | | B80K550 |
| MYE100-951 | | | | B80K575 |
| MYE100-102 | | | | B80K625 |
| MYE100-112 | | | | B80K680 |
| MYE100-122 | | | | B80K750 |
| MYE100-142 | | | | B80K880 |
Series: MYE30, Cat. Nos. MYE30-201, MYE30-241, MYE30-271, MYE30-331, MYE30-361, MYE30-391, MYE30-431, MYE30-471, MYE30-511, MYE30-621, MYE30-681, MYE30-751, MYE30-781, MYE30-821, MYE30-911, MYE30-951, MYE30-102, MYE30-112, MYE30-122, MYE30-142, MYE30-162, maybe followed by A, B or C.
Series: MYE40, Cat. Nos. MYE40-201, MYE40-221, MYE40-241, MYE40-271, MYE40-331, MYE40-361, MYE40-391, MYE40-431, MYE40-471, MYE40-511, MYE40-561, MYE40-621, MYE40-681, MYE40-751, MYE40-781, MYE40-821, MYE40-911, MYE40-951, MYE40-102, MYE40-112, MYE40-122, MYE40-142, MYE40-162, maybe followed by A, B or C.

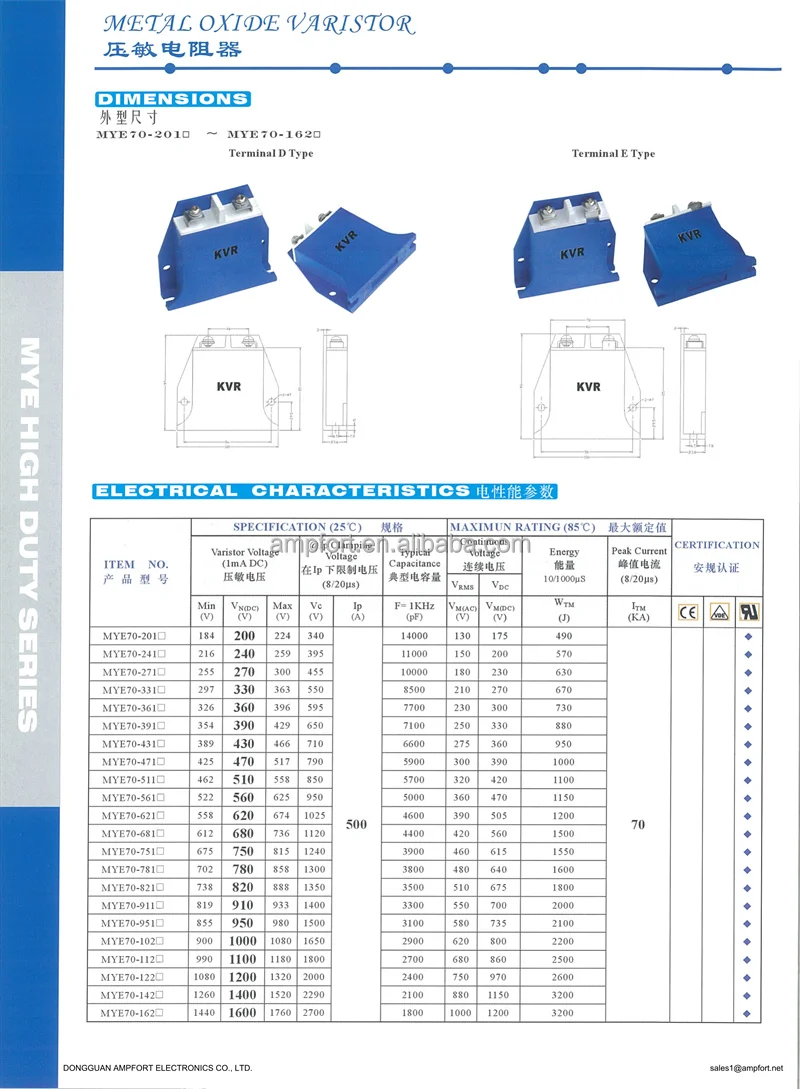

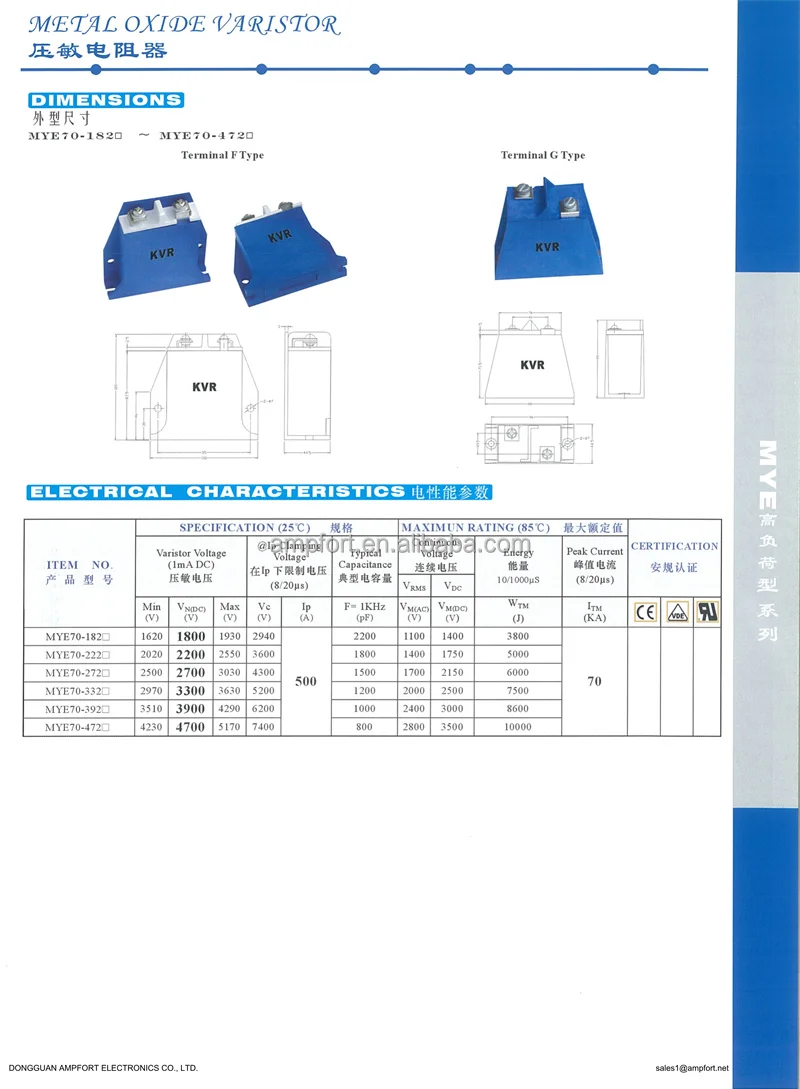

Series: MYE70, Cat. Nos. MYE70-201, MYE70-241, MYE70-271, MYE70-331, MYE70-361, MYE70-391, MYE70-431, MYE70-471, MYE70-511, MYE70-561, MYE70-621, MYE70-681, MYE70-751, MYE70-781, MYE70-821, MYE70-911, MYE70-951, MYE70-102, MYE70-112, MYE70-122, MYE70-142, MYE70-162, MYE70-182, MYE70-222, MYE70-272, MYE70-332, MYE70-392, MYE70-472, maybe followed by D, E, F or G
