Universal Female Vertical Horizontal Entry Brass ATS ATU Auto Blade Fuse Clip
Description
Fuse holders are devices for containing, protecting and mounting fuses. Fuse holders come in two basic types, open or fully enclosed. Open fuse holder types are fuse clips, fuse blocks, socket and plug-on cap varieties. The fully enclosed variety may use a fuse carrier that is inserted into a holder or have other means to fully enclose the fuse.
Automotive Blade Fuse Clips
* For Mini Blade Fuses
* PCB Mountable for Reliable Connection and Security
* Surface and Thru-Hole Mount Styles Available
* Fuse Reference: Littelfuse 297 or 997 series / Bussmann ATM series / APM / or equivalent
* Common features for fuse holders include waterproof, vibration resistant, and blow fuse indicator.

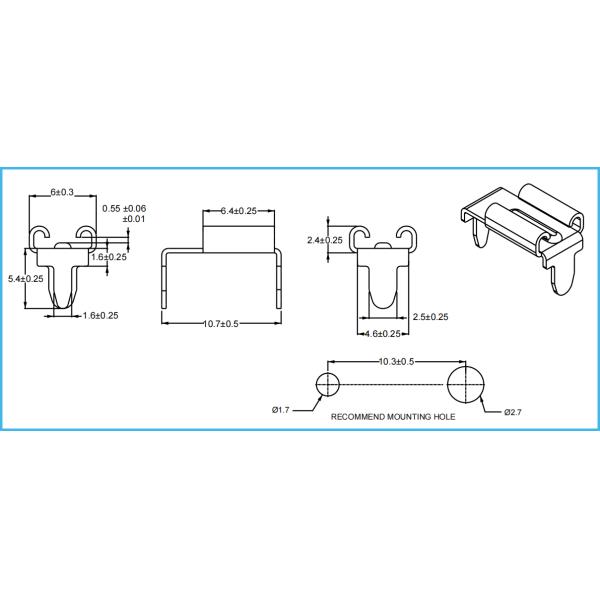

A-506D P.C.B moun Fuse Clip for ATS Blade fuse
| P/N | A-506D |
| Name | Mini Blade Fuse Clip |
| Stuitable Fuse | ATS/297 Mini Auto Fuse |
| Max current | 15A |
| Material | Bronze |
| Thickness | 0.3mm |
| Body material | Nylon UL 94V0 |
| Voltage Rating | 32V |
A-506F P.C.B moun Fuse Clip for ATU Blade fuse
| Name | Regular Blade Fuse Clip |
| P/N | A-506F |
| Stuitable Fuse | ATU/287 Standard Auto Fuse |
| Max current | 15A |
| Material | Bronze |
| Thickness | 0.3mm |
| Body material | Nylon UL 94V0 |
| Voltage Rating | 32V |
A-506K FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES
| Name | Mini Blade Fuse Clip |
| P/N | A-506K |
| Stuitable Fuse | ATS/297 Mini Auto Fuse |
| Max current | 15A |
| Material | Bronze |
| Thickness | 0.3mm |
| Body material | Nylon UL 94V0 |
| Voltage Rating | 32V |
| Finish | Bright Tin plated |
| Insertion & Extraction Force | 1kg min. |
A-506M FUSE CLIP P.C.BOARD TYPE FOR ATU BLADE FUSES
| Name | Regular Blade Fuse Clip |
| P/N | A-506M |
| Stuitable Fuse | ATU/287 Standard Auto Fuse |
| Max current | 15A |
| Material | Brass or Phosphor bronze |
| Thickness | 0.3mm |
| Body material | Nylon UL 94V0 |
| Voltage Rating | 32V |
| Finish | Tine plated |
| Remark | Ear or earless type,with axial and direction tags |
A-506M-1 FUSE CLIP P.C.BOARD TYPE FOR ATU BLADE FUSES
| Name | Regular Blade Fuse Clip |
| P/N | A-506M1 |
| Stuitable Fuse | ATU/287 Standard Auto Fuse |
| Max current | 30A |
| Material | Brass |
| Thickness | 0.4mm |
| Body material | Nylon UL 94V0 |
| Voltage Rating | 32V |
| Finish | Bright Tin plated |
| Terminal clip extraction force | 3.2±1 kg |
A-506N FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES
| Name | Mini Blade Fuse Clip |
| Stuitable Fuse | ATS/297 Mini Auto Fuse |
| P/N | A-506N |
| Max current | 15A |
| Material | Bronze |
| Thickness | 0.3mm |
| Body material | Nylon UL 94V0 |
| Voltage Rating | 32V |
| Finish | Tin or nickel plated |
| Mark | Ear or earless type,with axial and direction tags |
A-506P FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES
| Name | Mini Blade Fuse Clip |
| Stuitable Fuse | ATS/297 Mini Auto Fuse |
| P/N | A-506P |
| Max current | 15A 250V |
| Material | Phosphor Bronze |
| Thickness | 0.3mm |
| Insulation Resistance At 500V DC | 100M Min |
| Voltage Rating | 32V |
| Finish | Bright Tin plated |
| Temperature Rise | 50°C Max |
| Dielectric Strength For 60 Seconds | AC 500V Min. |
| Insertion & Extraction Force | 1kg. Min |
A-506PA FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES
| Name | Mini Blade Fuse Clip |
| P/N | A-506PA |
| Stuitable Fuse | ATS/297 Mini Auto Fuse |
| Max current | 15A 250V |
| Material | Phosphor Bronze |
| Thickness | 0.3mm |
| Insulation Resistance At 500V DC | 100M Min |
| Voltage Rating | 32V |
| Finish | Bright Tin plated |
| Temperature Rise | 50°C Max |
| Dielectric Strength For 60 Seconds | AC 500V Min. |
| Insertion & Extraction Force | 1kg. Min |
| Voltage drop | 20m V Max. |
Mounting
Mounting choices for fuse holders include fuse block, fuse clip, panel mount, PC mount, snap mount, and in-line mount. Important environmental parameters to consider when specifying fuse holders include operating temperature.
