MTA 00360 Replacement Panel Mount PA66 Housed Bolt Type Inline MIDI Fuse Holder 200A 125V Max Fireproof Flame Retardant
AMPFORT is one of the leading companies specializing in designing and manufacturing electronic and electromechanical components for the automotive industry.
Today, the company provides a wide assortment of products both for consumer manufacturers, industrial manufacturers, and inventors of agricultural vehicles. It is also a supplier of components used by well-established car manufacturers in the so-called initial assembly.
Manufacturer AMPFORT
Flame retardant,fireproof,withstand high temperature
Type of fuse accessories fuse holder
Fuse size 40mm
Maximum current 200A
Mounting push-in, screw
Fuses application automotive fuses, MIDIVAL series Leads M5 screws midi
Contact material steel
Number of ways 1
Operating temperature -40...125°C
Flammability rating UL94V-2
Contact plating tinned
Related items 1605815, 1705606, 1705616, 1705626, 1705656, 1705705, 1705715, 1705725, 1705726, 1705735, 1705745, 1705816, 1705825, 1705826, 1705835, 1705846, 1705855, 1705856, 1705925, 1708240, 1708245, 1708250
Body material polyamide 66
Colour black
Max. voltage 32V
Wire cross-section 2.5...20mm2
Product use: This series of fuses are used for overload and short -circuit protection of various high -power electrical circuits, such as motorcycles, RVs, forklifts, ships, and large -scale equipment.

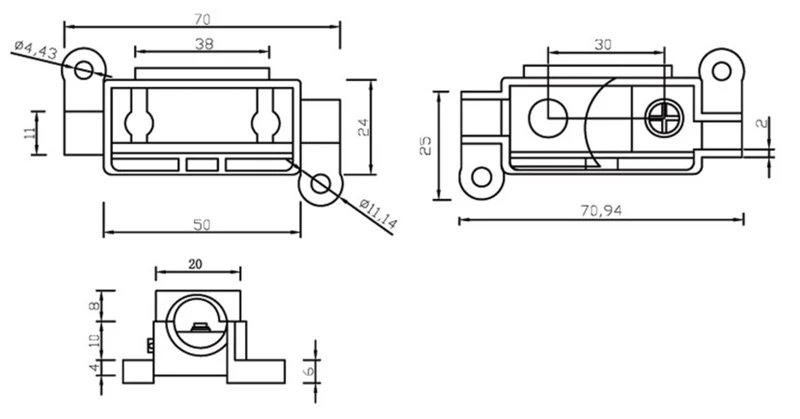

1.Size
2.Electrical Characteristics
Model: Small Fork fuse holder
Rating current: 20A-200A
Rated voltage: 32V/48V/72V/125V
Material: PA66 fire fire flame retardant high temperature resistance to high temperature resistance
| Max Voltage Rating | 32v-125v |
| Flammability Rating | 94-V2 |
| Fuse Type | MIDI |
| Current Rating | 200A MAX |
| Material | Nylon PA66 |
