HKW9700-G Thermal Protector 5A 250V 100C NC Normal Closed Bimetal Thermostat KSD9700 For Car Motor Battery Transformer

Name: HKW9700G Thermal Protector 5A 250V 100C NC Normal Closed Bimetal Thermostat KSD9700 For Car Motor Battery Transformer
Brand: CNAMPFORT
Price: 1 USD

China HKW9700-G Thermal Protector 5A 250V 100C NC Normal Closed Bimetal Thermostat KSD9700 For Car Motor Battery Transformer wholesale

Brand Name : CNAMPFORT

Model Number : HKW9700-G100C

Certification : CQC UL KC TUV ROHS REACH

Place of Origin : Dongguan,Guangdong,China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10kkpcs per month

Delivery Time : 2 weeks

Packaging Details : BULK,100PCS PER BAG,200g Per bag

Name : KSD9700 Thermal Protector

Dimension : 20*7.6*3.6mm

Housing : Metal

Type : Normal close NC

Rated current : 5A

Rated Voltage : 250V

Lead Length : 70mmx2

Cable : 1015 22AWG

Contact Now

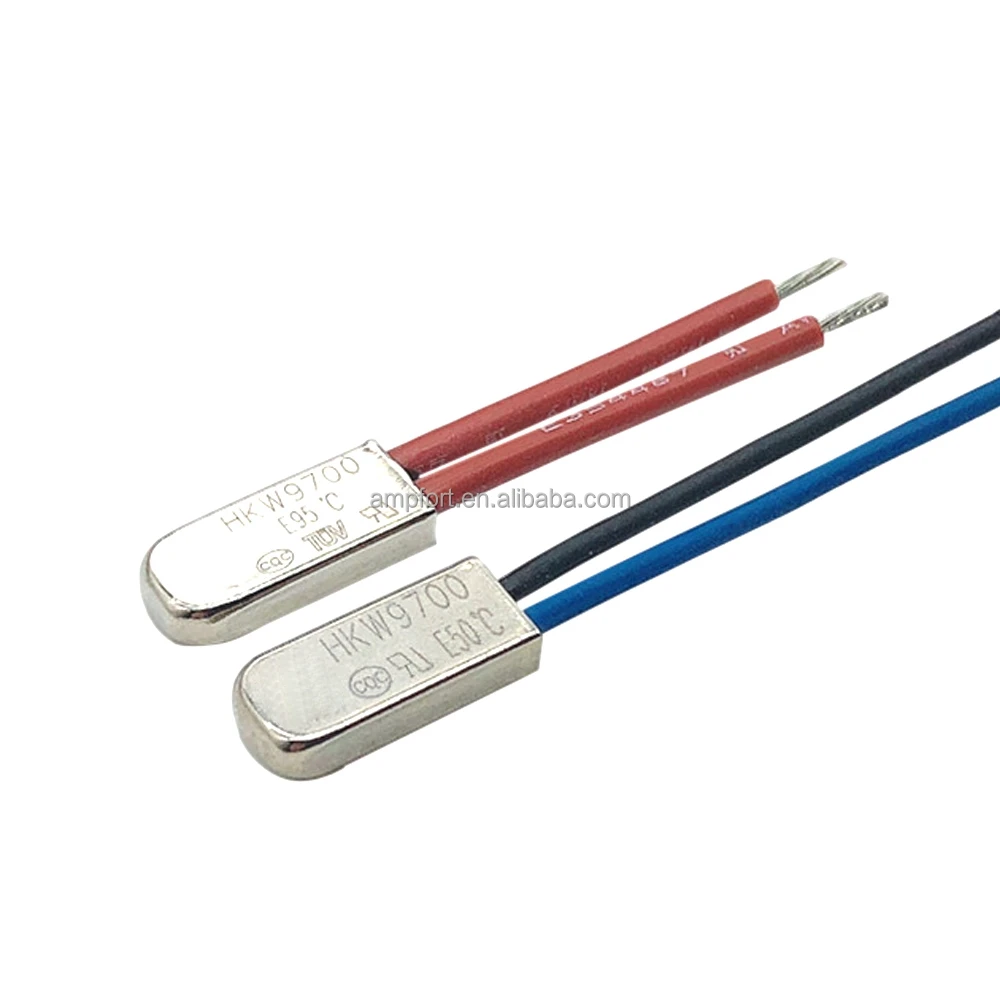

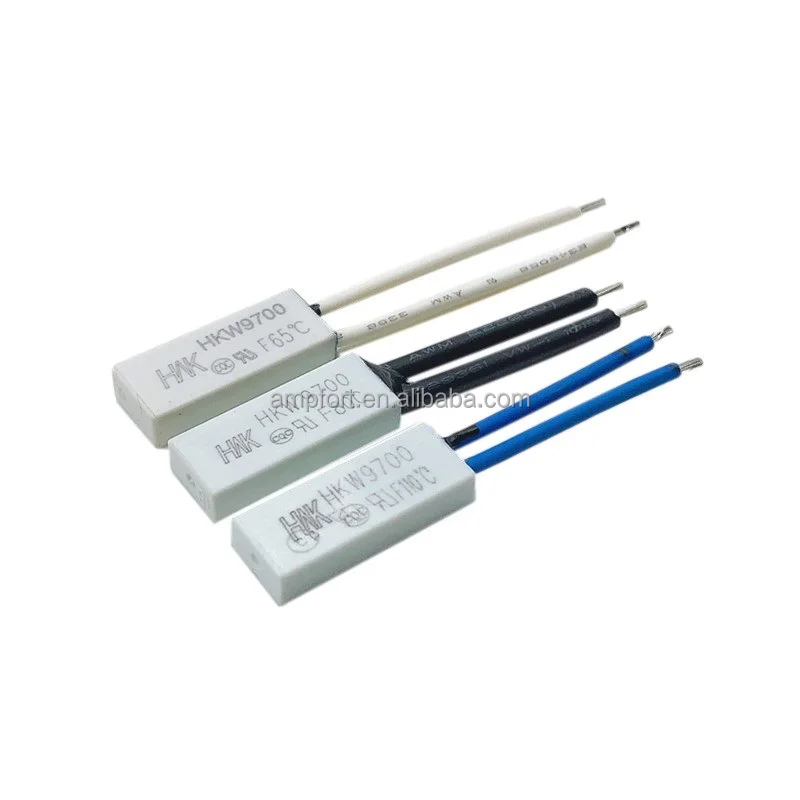

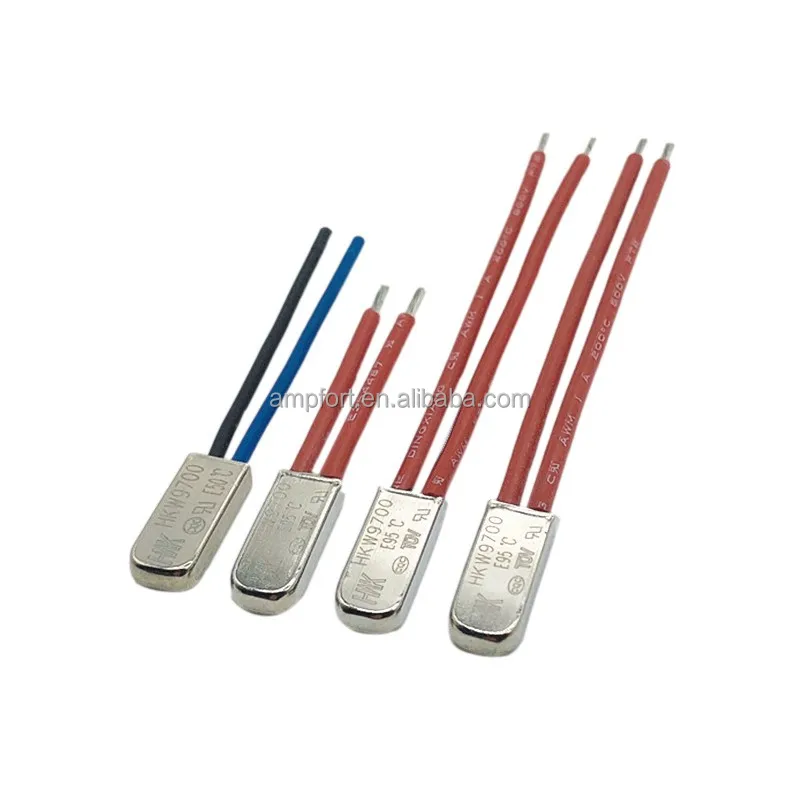

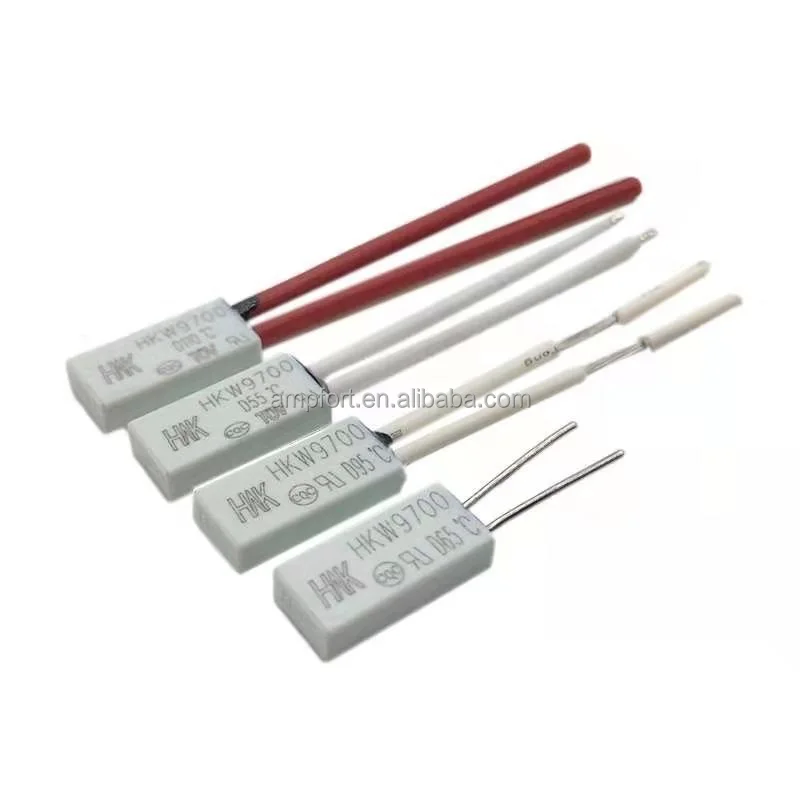

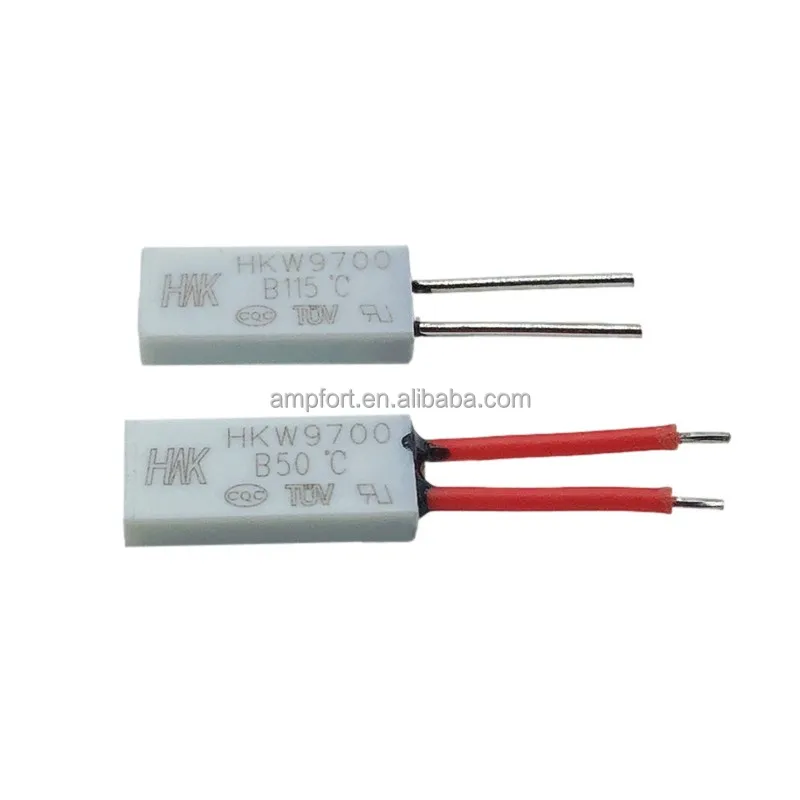

HKW9700-G Thermal Protector 5A 250V 100C NC Normal Closed Bimetal Thermostat KSD9700 For Car Motor Battery Transformer

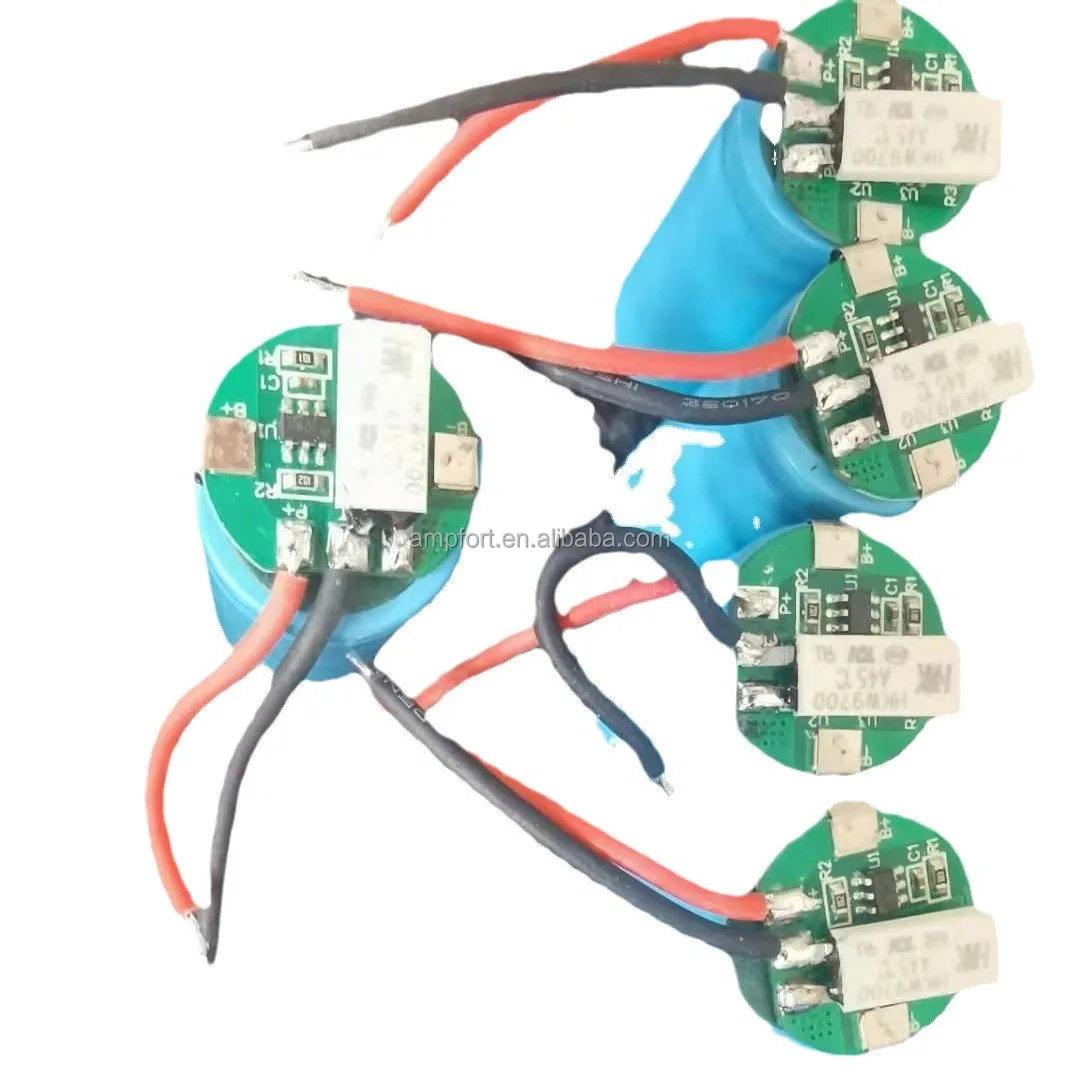

HKW9700-G thermal protector has small dimension; insulation shell; sensitive and long life time. Its widely use in new energy battery; motor; power; ballast; transformer; integrated circuit and electrical equipment’s overheat and overload double protection.

HKW9700-G thermal protector use unique bimetal and don’t need more auxiliary parts. Using bimetal Self-sensing temperature and Current thermal effect to change the bimetal’s shape to control the electric circuit cut off or contact on. Overheat and overload double protection.certification:CQC18002202372 CQC180022022369 UL E502318 KC ZU02105-19001 TUV B1039300001 ROHS AGC01409190101101-001 REACH AGC01409190101101-003

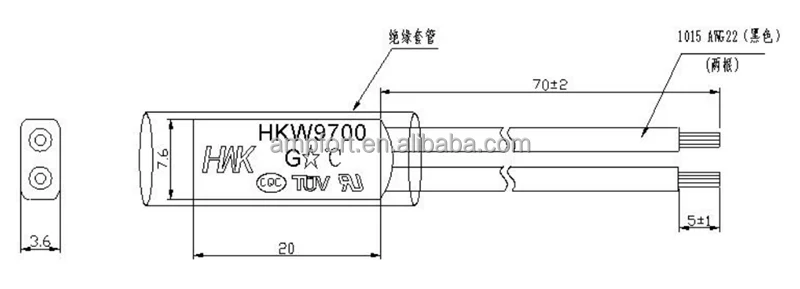

Metal shell: 20*7.6*3.6mm(Plastic shell:20*8*4mm)

Contact type: Normal closed or normal opened

Ratings: DC 12V-12A 24V-8A,AC 250V-5A 125V 7A (10A can be customized)

Action temp:30℃~150℃

Reset temp: 20℃~110℃

HKW9700-G Thermal Protector 5A 250V 100C NC Normal Closed Bimetal Thermostat KSD9700 For Car Motor Battery Transformer

Action /reset temperature reference table

item	off temp	Reset temp	item	off temp	Reset temp
30	30±3℃	≥20℃	95	95±5℃	70±15℃
35	35±3.5℃	≥25℃	100	100±5℃	70±15℃
40	40±4℃	≥30℃	105	105±5℃	75±15℃
45	45±4.5℃	≥33℃	110	110±±5℃	75±15℃
50	50±5℃	≥35℃	115	115±5℃	80±15℃
55	55±5℃	42±6℃	120	120±5℃	85±15℃
60	60±5℃	45±8℃	125	125±5℃	85±15℃
65	65±5℃	48±10℃	130	130±5℃	90±15℃
70	70±5℃	50±12℃	135	135±5℃	95±15℃
75	75±5℃	53±14℃	140	140±5℃	100±15℃
80	80±5℃	55±15℃	145	145±5℃	100±15℃
85	85±5℃	60±15℃	150	1505℃	105±15℃
90	90±5℃	65±15℃	155	155±5℃	110±15℃

HKW9700-G Thermal Protector 5A 250V 100C NC Normal Closed Bimetal Thermostat KSD9700 For Car Motor Battery Transformer
