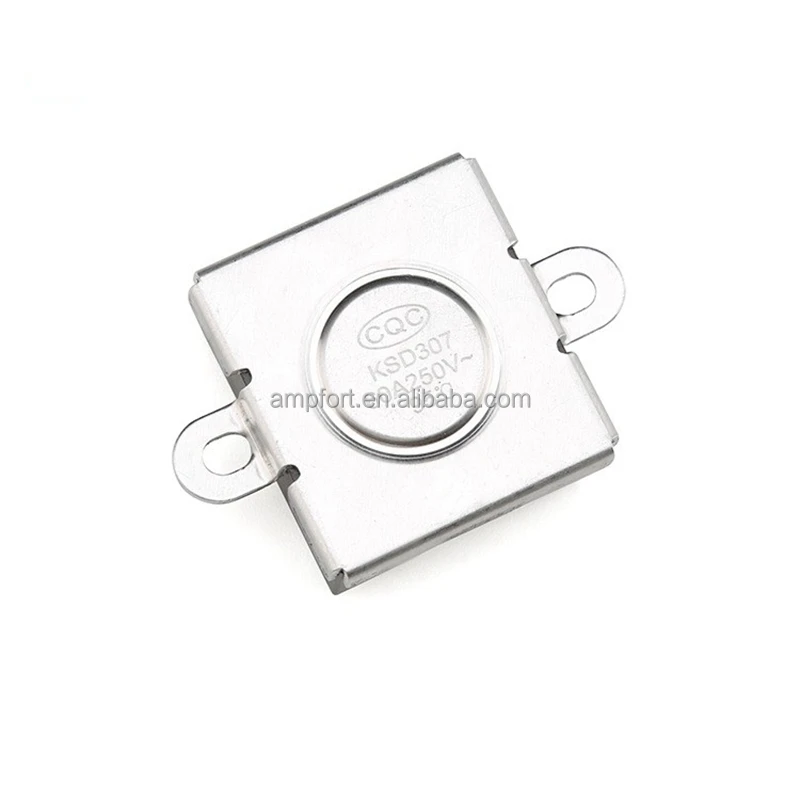

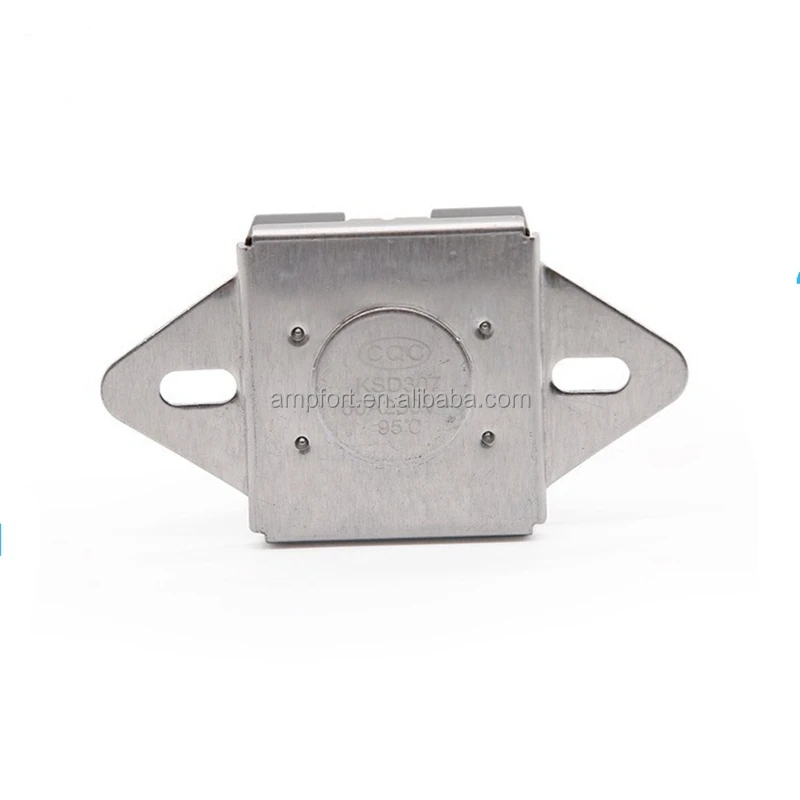

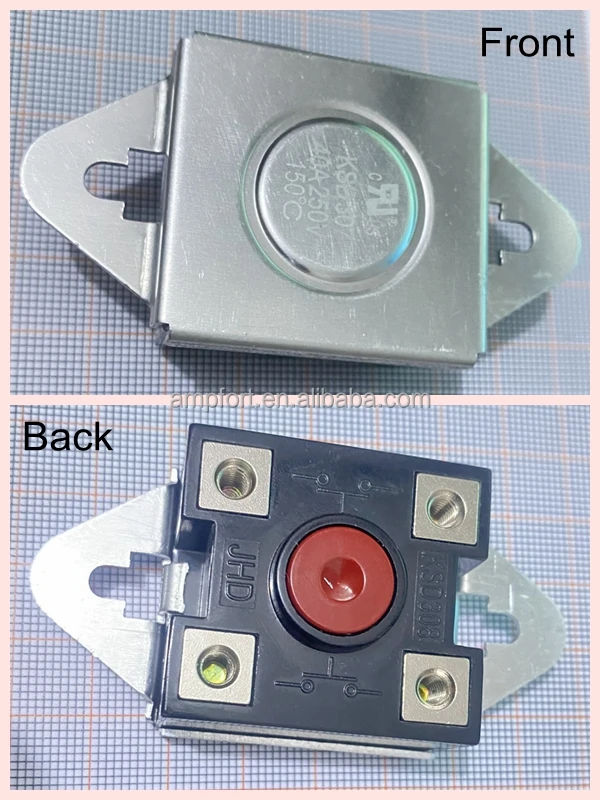

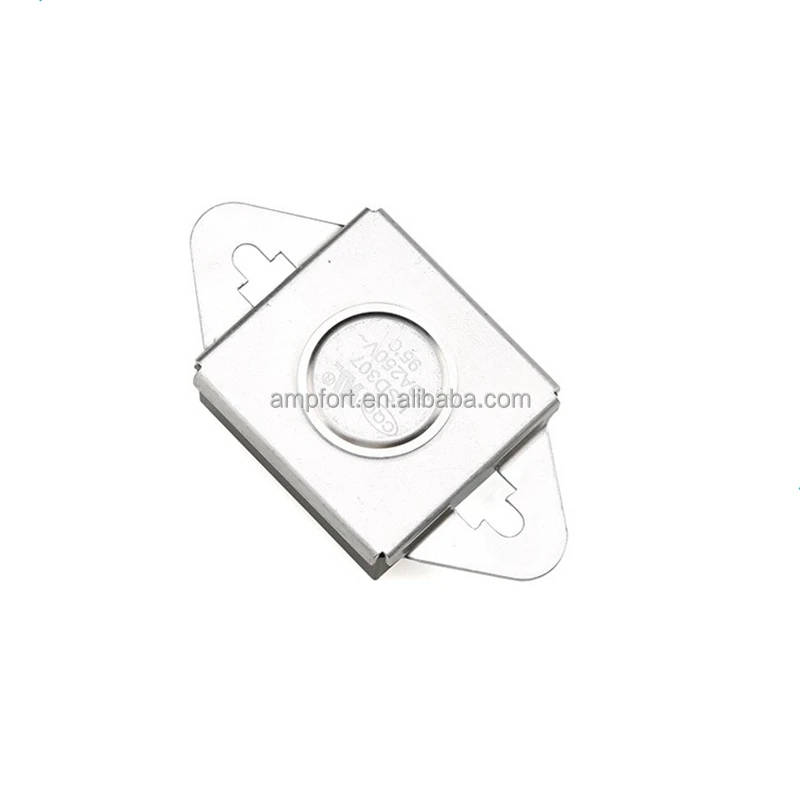

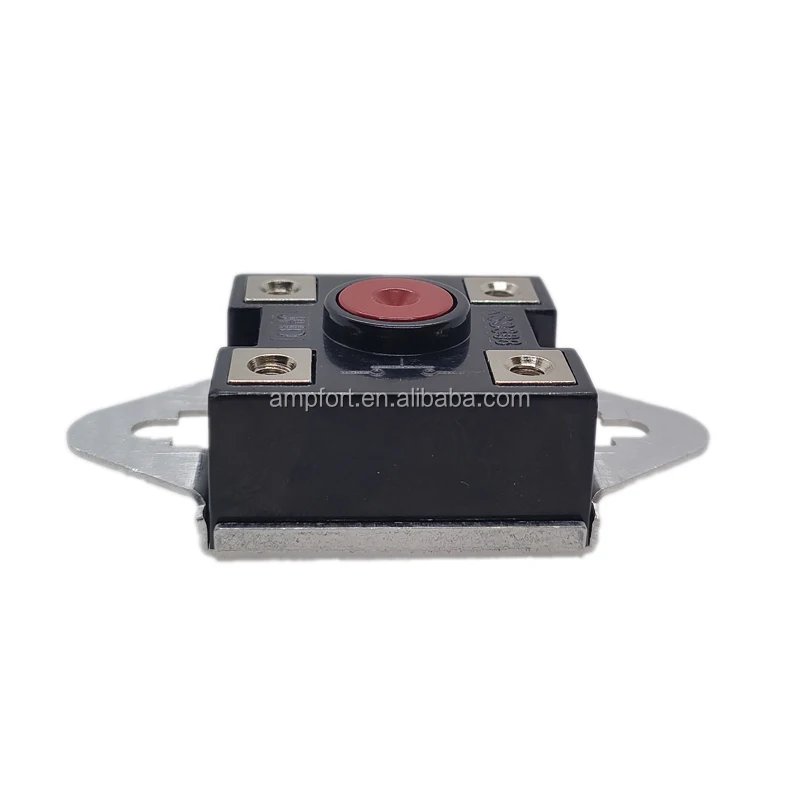

KSD307 KSD308 KSD309 Manual Auto Reset Normal Open Close Type Temperature Thermal Switch Bimetal Thermostat 40A 45A 50A 60A
The KSD307 bipolar jump temperature controller uses a butterfly -shaped dual -metal piece to produce instant beats under the action of temperature. Through the mechanical structure, the two groups can move quickly to achieve the purpose of disconnecting or connecting the bipolar circuit simultaneously at the same time. Essence
[Model]: KSD307
[Temperature]: 50 ° C-250 ° C, one specification every 5 ° C, a specification every 5 ° C, can provide any temperature within the range according to customer requirements
[Features]: The integrated structure of the power component has a fixed installation hole and is convenient for installation; it has stable working characteristics and excellent reliability;
1. The integrated structure of the power component, high temperature accuracy;
2. Quickly feel warm, reliable and concise movements, long life;
3, have fixed installation holes, easy to install;
4. Automatic reset/manual reset;
5, can set the temperature value according to customer requirements;
Kitchen Bao, solar water heaters, namely hot electric water heaters, water storage electric water heaters, fast thermal electric water heaters, all kinds of electric heater
Electrical Specifications
| 30A/250V AC (resistor load) | 35A/250V AC (resistor load) |
| 40A/250V AC (resistor load) | 45A/250V AC (resistor load) |
| 50A/250V AC (resistor load) | 60A/250V AC (resistor load) |
| Move temperature range | 50 ° C-250 ° C, one specification every 5 ° C, can provide any temperature within the range according to customer requirements |
| Temperature tolerance | action: ± 3, ± 5, ± 10 |
