Press - In Mount AGC MDL 3AB 3AG Fuse Holder Block Clip FS-600 15A 250V For 6.35mm Cylindrical Cartridge Fuse

Name: Press In Mount AGC MDL 3AB 3AG Fuse Holder Block Clip FS600 15A 250V For 635mm Cylindrical Cartridge Fuse
Brand: CNAMPFORT
Price: 1 USD

China Press - In Mount AGC MDL 3AB 3AG Fuse Holder Block Clip FS-600 15A 250V For 6.35mm Cylindrical Cartridge Fuse wholesale

Brand Name : CNAMPFORT

Model Number : FS-600

Certification : ROHS,REACH

Place of Origin : Dongguan,China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10KKPCS PER MONTH

Delivery Time : 7 Workdays

Packaging Details : Bulk

Commodity Name : 3AG Fuse Holder

Suitable Fuse : 3AB 1/4 Inch Diameter Fuses

Max current : 15A

Rating Voltage : 250 VAC/VDC

Contacts : Nickel Plated Brass, T=0. 5mm

Current Level : 15A max

Plating : Nickel-plated

Mounting Type : Panel Mount

Contact Now

Press-In Mount AGC MDL 3AB 3AG Fuse Holder Block Clip FS-600 15A 250V For 6.35mm Cylindrical Cartridge Fuse

Ampfort Fuseholders and Clips - 6.3x32mm

Ampfort fuseholders and clips offer a comprehensive solution to a variety of application requirements.

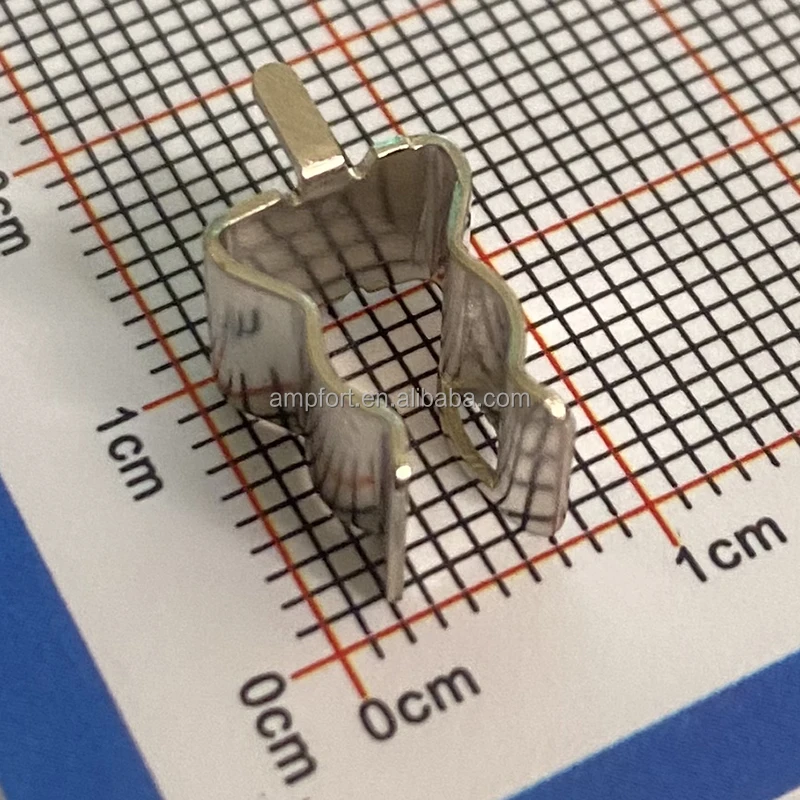

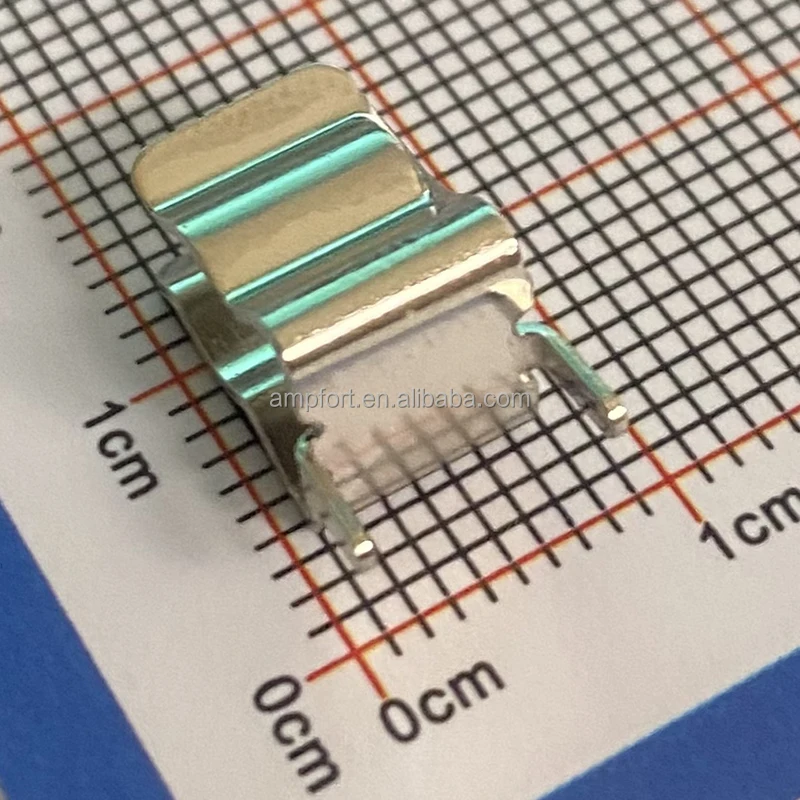

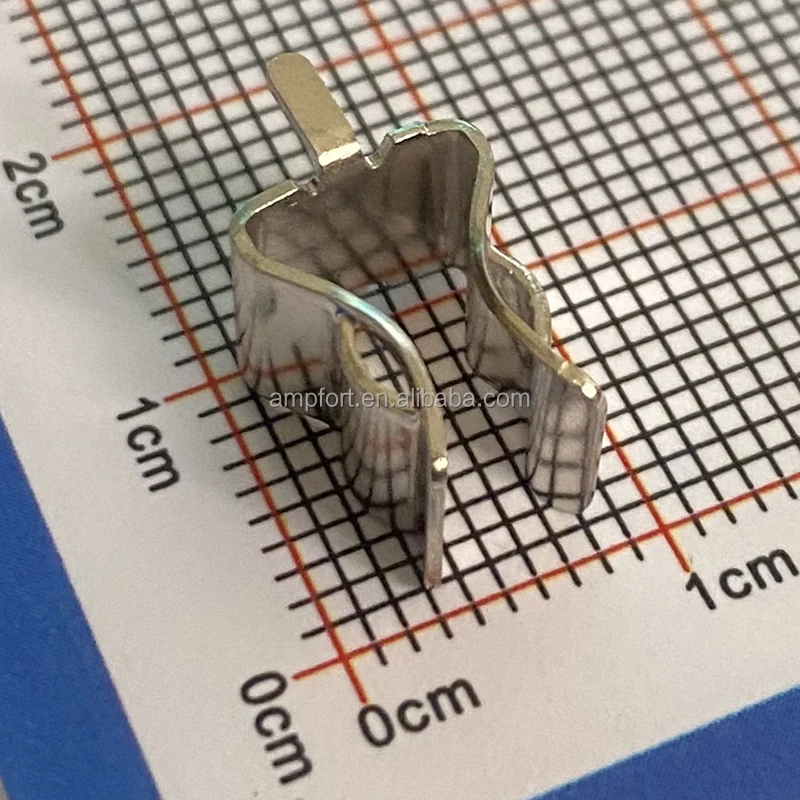

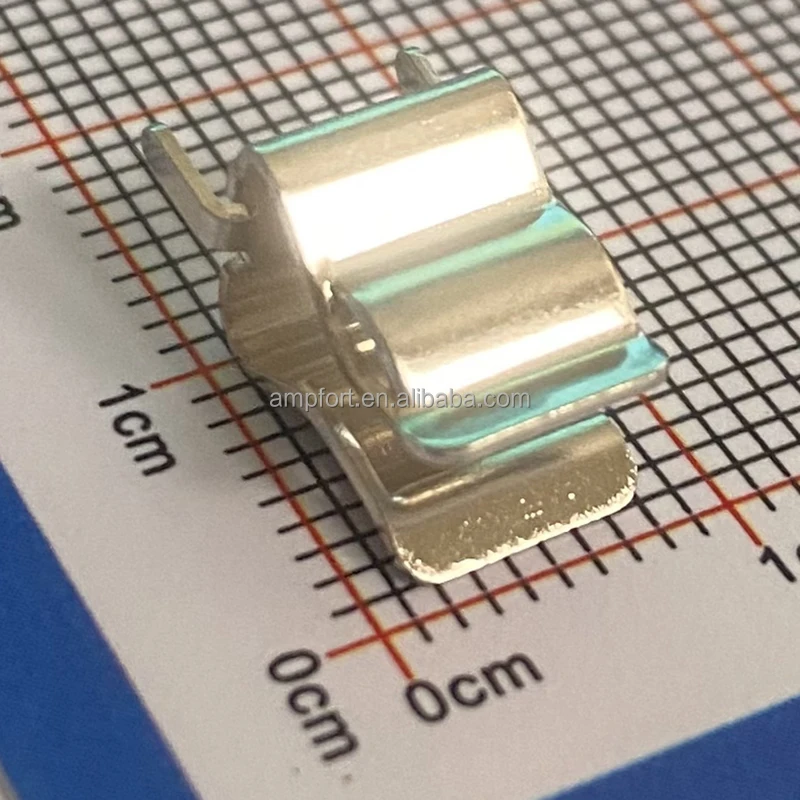

These are metal fuse clips for AGC/MDL/3AG (6x30mm / 1.25") Style fuses. They are intended to be used as fuse holders in PC Board mounting applications (through hole). Each fuse clip has 2 solder tabs and will hold a 3AG type fuse when used in pairs. Features:

Nominal current: 15A

Nominal voltage: 250V AC

RoHS compliant: yes

Specification: FS-600(PCB side connection)

Suitable for fuses: 6.35 x32 mm

Connection Type: Solder Leads for PC Board Mounting

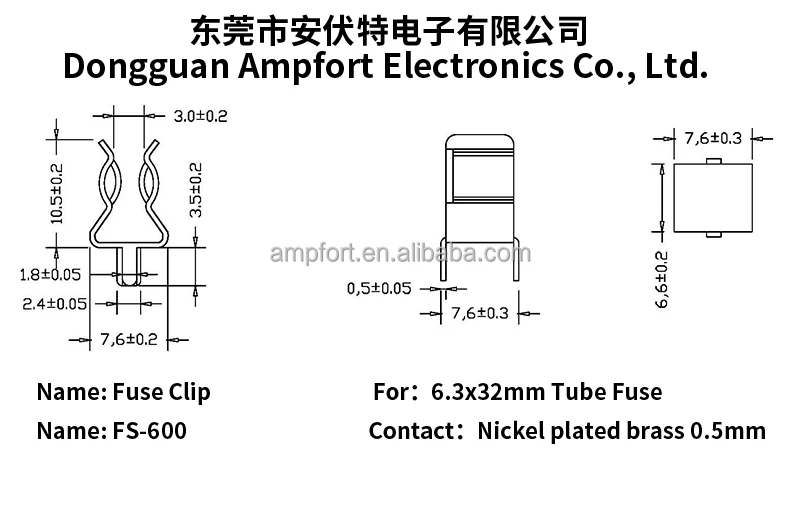

1.Size

Press - In Mount AGC MDL 3AB 3AG Fuse Holder Block Clip FS-600 15A 250V For 6.35mm Cylindrical Cartridge Fuse

2.Electrical Characteristics

material	Contacts--brass, T=0. 5mm
Terminal finish	Nickel plated
Removed burrs and sharp edge
For 6.35x32mm cartridge or equivalent
Rated voltage	250V
Suitable rated current	15A
Fully insulated clips to protect fuses against shorting
Withstands shock and vibration
Packing	1000PCS/bag

Press - In Mount AGC MDL 3AB 3AG Fuse Holder Block Clip FS-600 15A 250V For 6.35mm Cylindrical Cartridge Fuse
