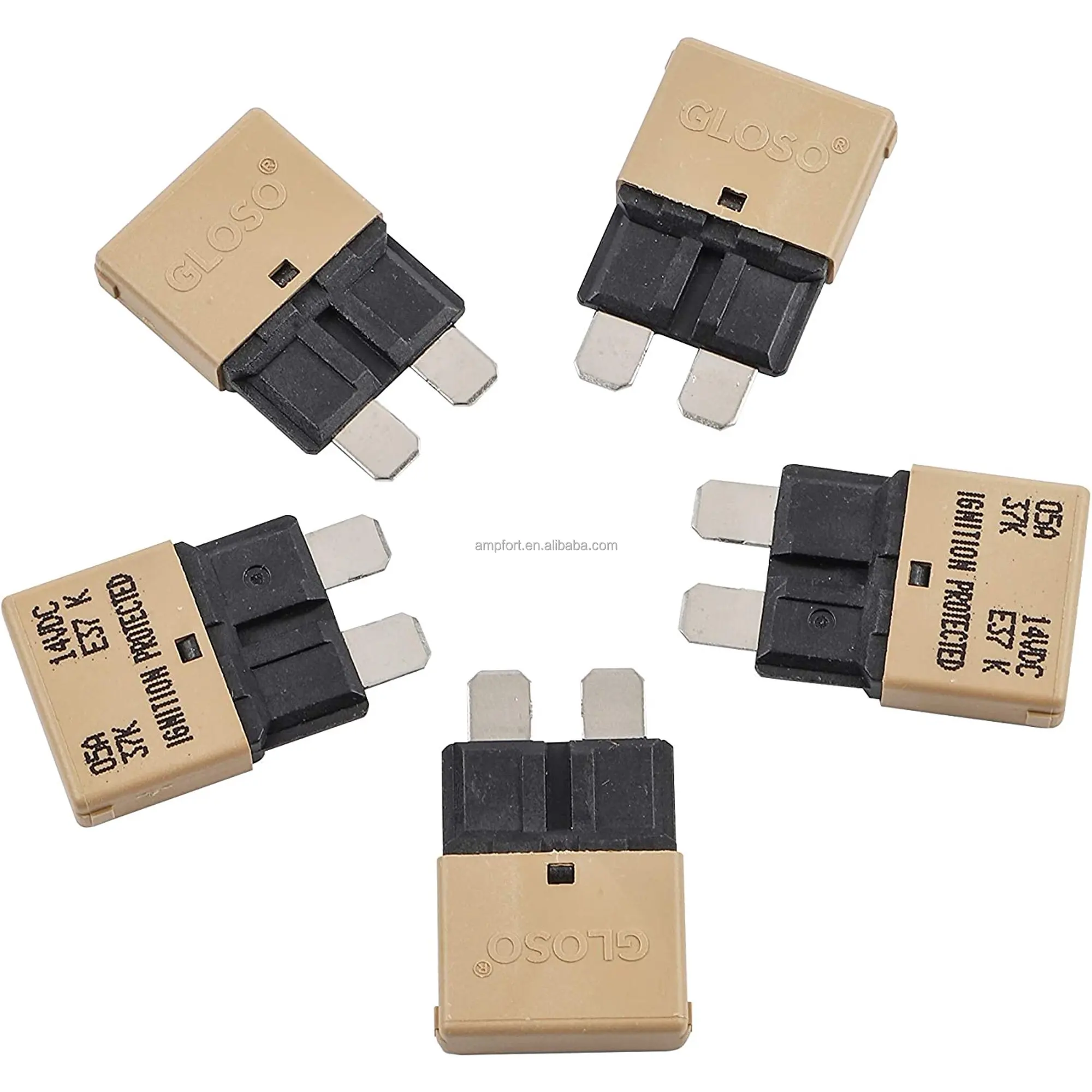

Auto Reset Circuit Breaker Thermal Circuit Protector E37 5A 14Vdc T1 Low Profile ATO ATC Standard Fuse For Winch Boat Audio
28V 32V DC 5A to 30A E37 T1 Automatic Auto Reset Low Profile ATC ATO Circuit Breaker Standard Blade Fuses for Winch Boat Audio •DC CIRCUIT BREAKERS
•POWER BREAKER
•MAIN BREAKER
-Applied to solar system, inverter, new energy vehicles, trucks, forklift and other devices. -The circuit breaker uses temperature control and reset arm to achieve the reusable function, enables the breaker to play the same role as switches.
Single Pole Thermal Type Breakers Rating: 5A, 14Vdc
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals
Marking: Cover is color-coded to amperage ratings
Termination: 5.2mm wide blades compatible with ATC type fuse blocks
Compliances: SAEJ553; SAEJ1171 (Ignition protected)
The height (excluding terminals) of this breaker is 1.16" (29.5 mm) and standard fuse is around 0.48" (12.19 mm).
The breakers are taller and may not fit into some fuse boxes.
| Part Number | E37-05K-4-01 |
| Description | 05A |
| Family | Thermal Circuit Protector (Breaker) |
| Category | E37 |
| Series | E37 |
| Voltage | 14Vdc |
| Rated Current | 05A |
| Reset Type | T1, Auto Reset |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) |
| Interrupt Capacity | 2,000 Amp @ 28Vdc |

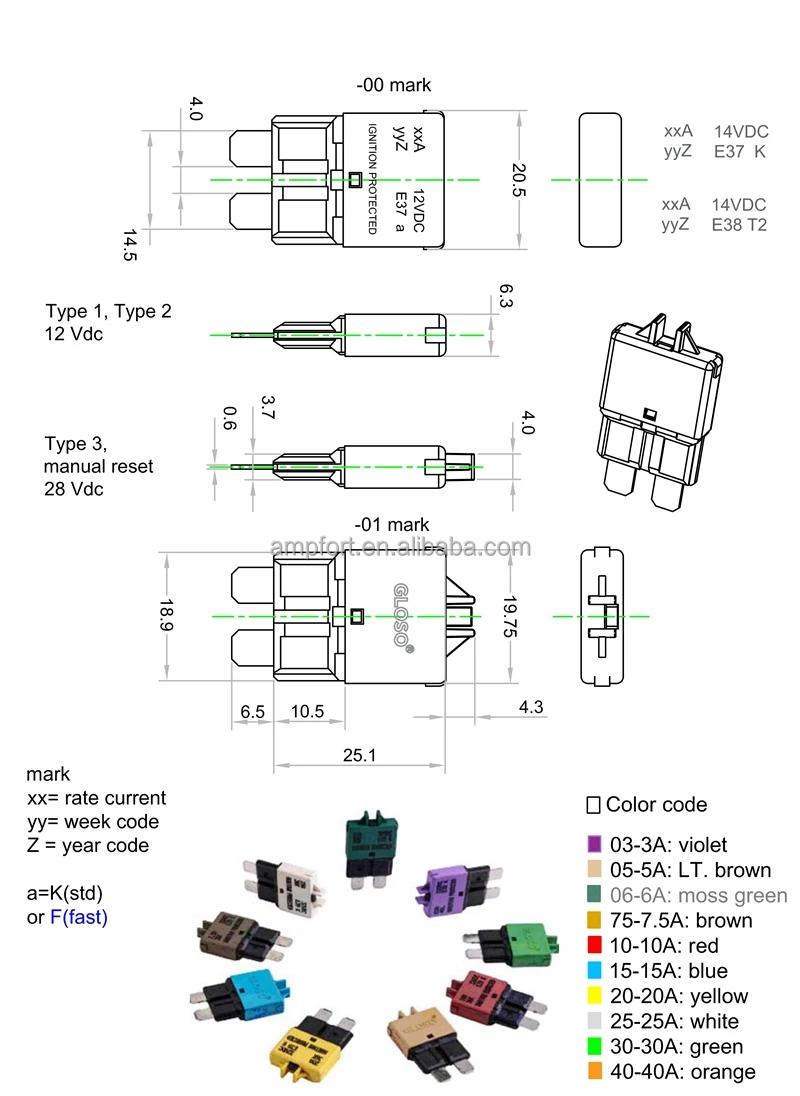

| Dimension | Length: 19.7
Width: 6.2
Height: 29.5
Unit: mm |
| Weight | 5 g |
| RoHS | Y |
| Standard Pack | 1500 |
| Regulatory Compliance Summary | SAEJ 553; SAEJ 1171 (Ignition Protected); UL1500 |
| Termination | 5.2mm wide blades (ATC Type) |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) |
