High Surge 1 Circuit Through Hole Disc Zinc Metal Oxide Varistor 20D241KJN 20mm 240V 6500A

Name: High Surge 1 Circuit Through Hole Disc Zinc Metal Oxide Varistor 20D241KJN 20mm 240V 6500A
Brand: CNAMPFORT
Price: 1 USD

China High Surge 1 Circuit Through Hole Disc Zinc Metal Oxide Varistor 20D241KJN 20mm 240V 6500A wholesale

Brand Name : CNAMPFORT

Model Number : 20D241K,20D241KJ,20D241KN

Certification : CQC,UL,VDE

Place of Origin : CHINA

MOQ : 1000

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 900,000pcs per month

Delivery Time : 2 weeks

Packaging Details : Bulk,Tape in reel/ammo

Name : Metal Oxide Varistor

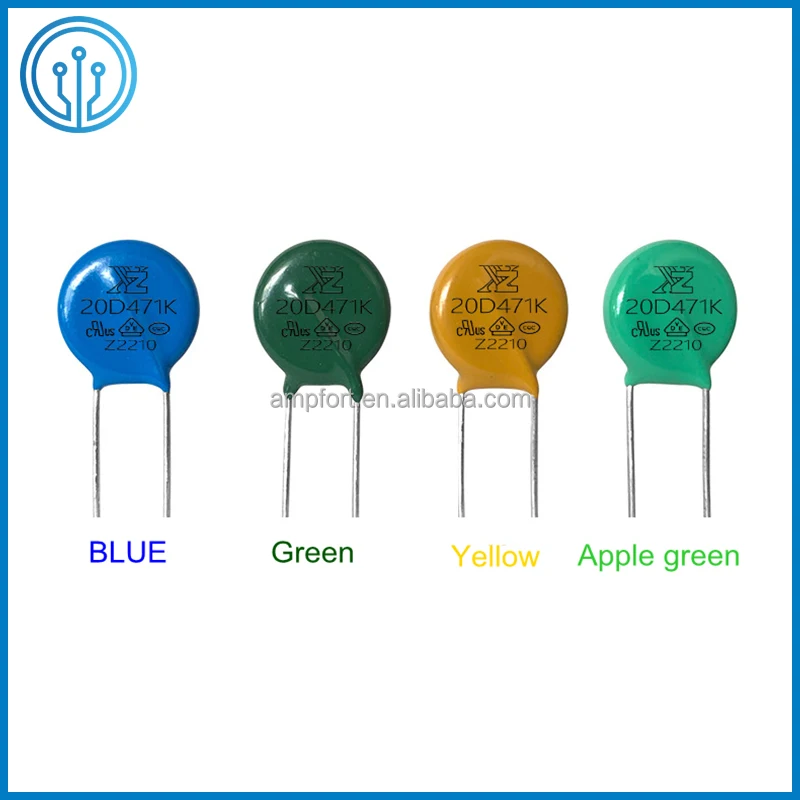

Color : Blue,Green,Apple Green,Yellow etc.

Package / Case : 20mm

Mounting Type : Through Hole

Operating Temperature : -40°C ~ 125°C

Number of Circuits : 1

Current - Surge : 6.5~10KA

Varistor Voltage (Typ) : 240V

Contact Now

High Surge 1 Circuit Through Hole Disc Zinc Metal Oxide Varistor 20D241KJN 20mm 240V 6500A

Product Description

The 20D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs. The maximum peak surge current rating can reach up to 10KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.

High Surge 1 Circuit Through Hole Disc Zinc Metal Oxide Varistor 20D241KJN 20mm 240V 6500A

Features

- Wide operating voltage (V1mA) range from 8V to 1800V

- Fast responding to transient over-voltage

- Large absorbing transient energy capability

- Low clamping ratio and no following-on current

- Meets MSL level 1, per J-STD-020

Application

* Transistor, diode, IC, thyristor or triac semiconductor protection

* Surge protection in consumer electronics

* Surge protection in industrial electronics

* Surge protection in electronic home appliances, gas and petroleum appliances

* Relay and electromagnetic valve surge absorption

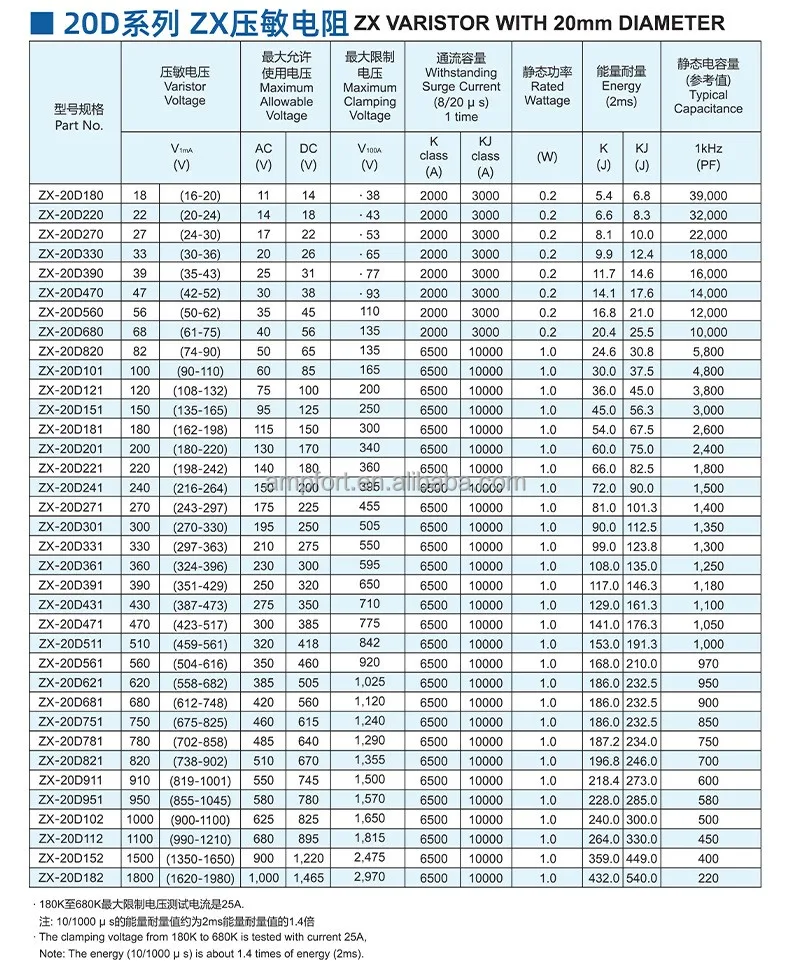

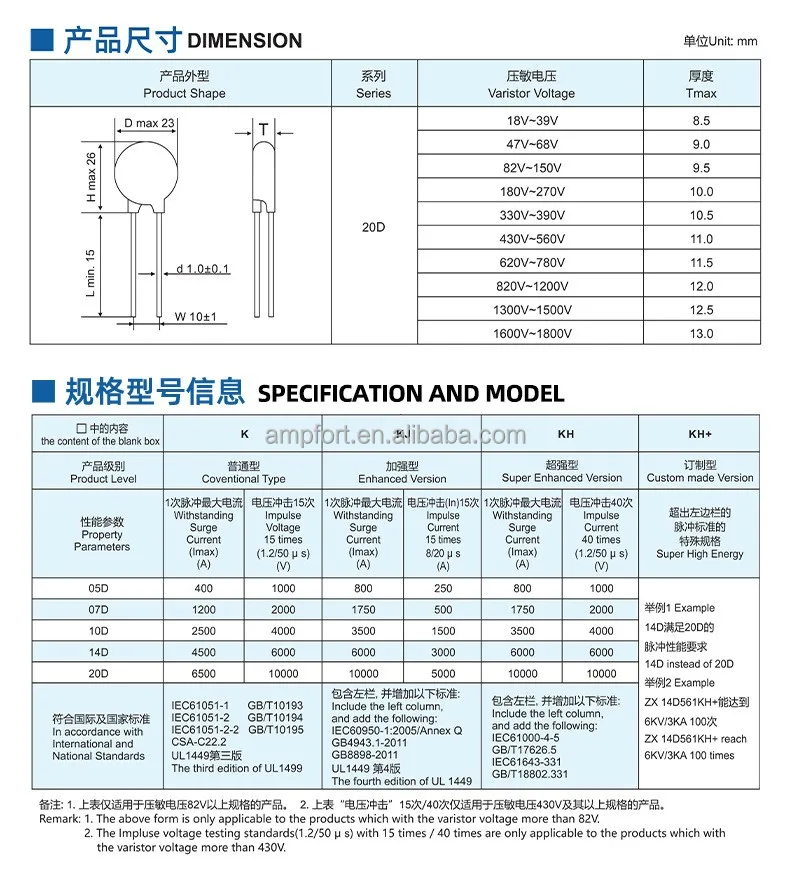

Specification

High Surge 1 Circuit Through Hole Disc Zinc Metal Oxide Varistor 20D241KJN 20mm 240V 6500A

Mounting Type	Through Hole
Package / Case	Disc 20mm
Maximum AC Volts	150V
Maximum DC Volts	200V
Varistor Voltage (Typ)	240V
Current - Surge	6.5KA/10KA

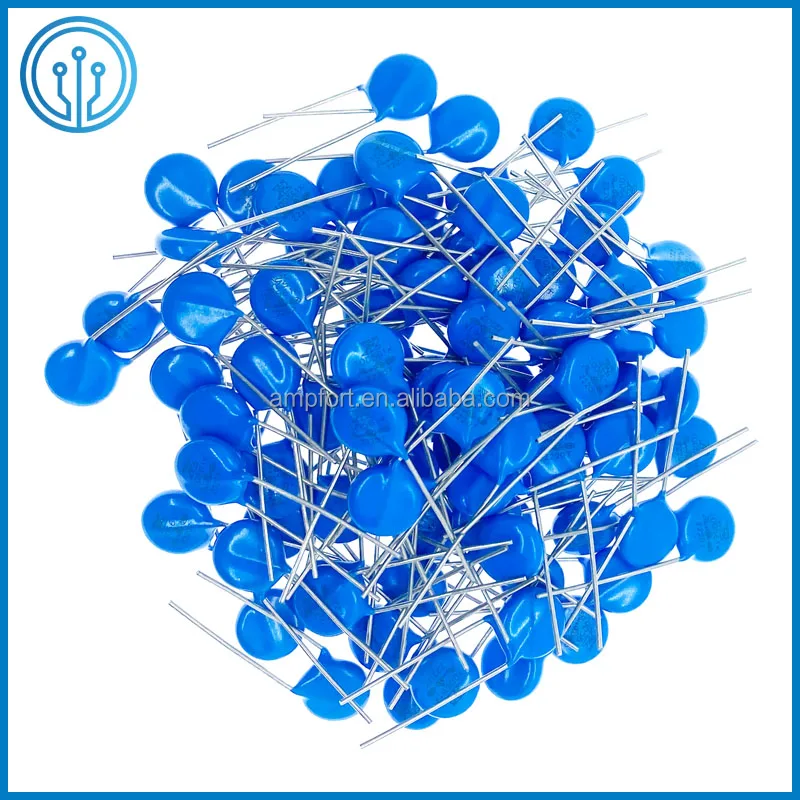

Product Display

High Surge 1 Circuit Through Hole Disc Zinc Metal Oxide Varistor 20D241KJN 20mm 240V 6500A
